Module com.flexganttfx.view
Package com.flexganttfx.view
Class GanttChartLite<R extends Row<?,?,?>>
- java.lang.Object
-
- javafx.scene.Node
-
- javafx.scene.Parent
-
- javafx.scene.layout.Region
-
- javafx.scene.control.Control
-
- com.flexganttfx.view.util.FlexGanttFXControl
-
- com.flexganttfx.view.GanttChartBase<R>
-
- com.flexganttfx.view.GanttChartLite<R>
-
- Type Parameters:
R
- the type of the rows shown by the Gantt chart (e.g. "Aircraft")
- All Implemented Interfaces:
Styleable
,EventTarget
,Skinnable
public class GanttChartLite<R extends Row<?,?,?>> extends GanttChartBase<R>
A control used to visualize any kind of scheduling data along a timeline. The model data needed by the control consists of rows with activities, links between activities, and layers to group activities together.getRows()
- returns the list of rowsGanttChartBase.getLayers()
- returns the list of layersGanttChartBase.getLinks()
- returns the list of links between activities
The control consists of several children controls:GraphicsBase
: shown on the right-hand side to display a graphical representation of the model dataTimeline
: shown above the graphics view. The timeline itself consists of two child controls.Dateline
: displays days, weeks, months, years, etc...Eventline
: displays various time markers
Visually the lite Gantt chart is very similar to a regular Gantt chart that is using the display mode GRAPHICS_ONLY. The big difference is that the lite Gantt chart does not create a tree table view and that the rows can be added as a simple list instead of a hierarchy of rows.

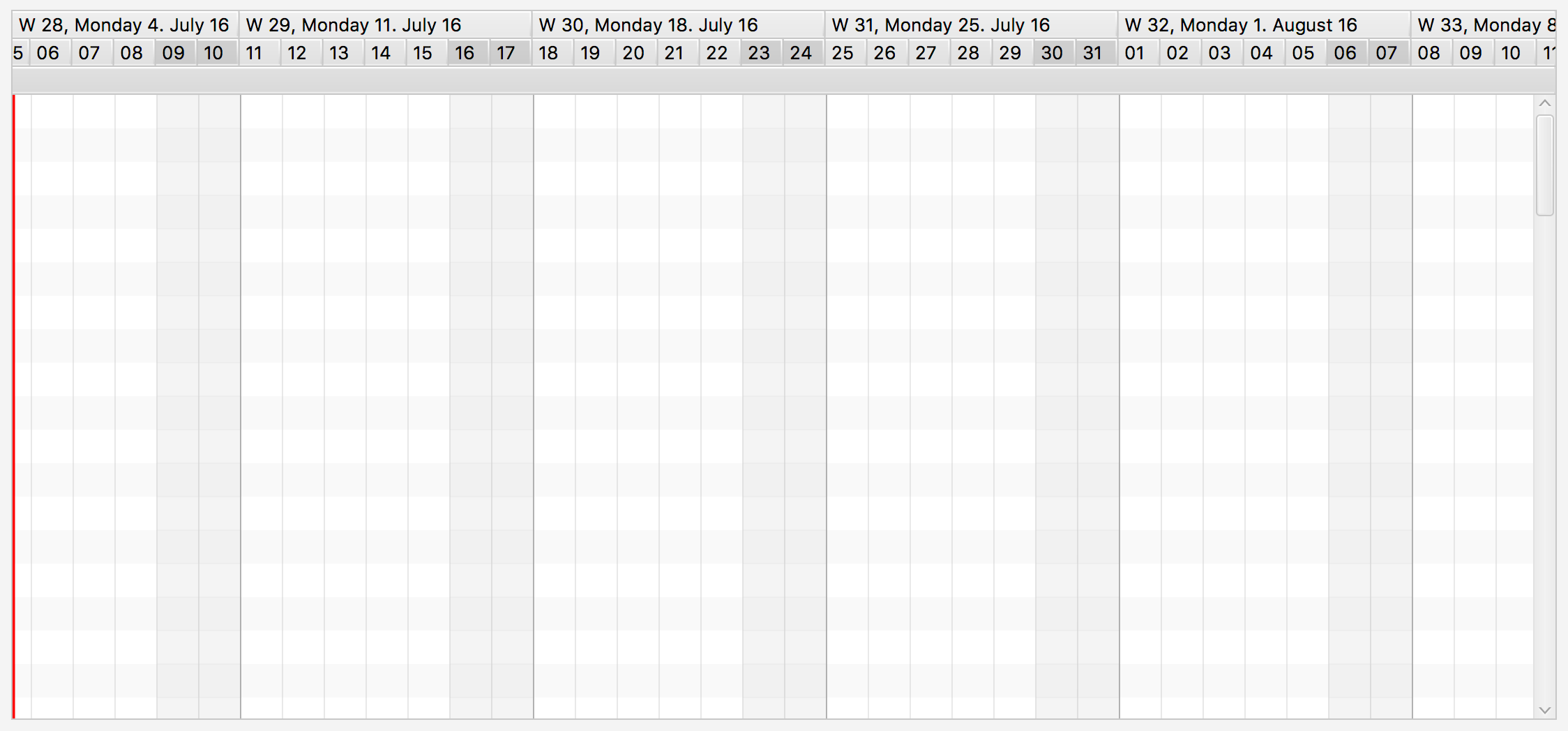

The screenshot belows shows the initial appearance of an empty Gantt chart (lite) control.
Master / Detail Panes
The Gantt chart uses a single MasterDetailPane instance from ControlsFX for the high-level layout. The pane initially displays a property sheet as its detail node. The property sheet is used at development time and can be replaced with any node by callingGanttChartBase.setDetail(Node)
. The property sheet displays a lot of properties that are used by the controls, the renderers, the system layers to fine-tune the appearance of the control. Many of them can be changed at runtime.Standalone vs. Multi- / Dual Gantt Chart
A Gantt chart can be used standalone or inside aMultiGanttChartLiteContainer
orDualGanttChartLiteContainer
. When used in one of these containers thePosition
of the Gantt chart becomes important. The control can be the first chart, the last chart, the only chart, or a chart somewhere in the middle. A "first" or "only" chart always displays a timeline. A "middle" or "last" displays an (optional) special header (seeGanttChartBase.setGraphicsHeader(Node)
). The containers are also the reason why the control distinguishes between a timeline (GanttChartBase.getTimeline()
) and a master timeline (GanttChartBase.getMasterTimeline()
). The master timeline is the one shown by the "first" chart, while the regular timeline is the one that belongs directly to an individual Gantt chart instance.Code Example
import java.time.Duration; import java.time.Instant; import java.time.temporal.ChronoUnit; import javafx.application.Application; import javafx.scene.Scene; import javafx.stage.Stage; import com.flexganttfx.model.GanttChartModel; import com.flexganttfx.model.Layer; import com.flexganttfx.model.Row; import com.flexganttfx.model.activity.MutableActivityBase; import com.flexganttfx.model.layout.GanttLayout; import com.flexganttfx.view.GanttChart; import com.flexganttfx.view.graphics.GraphicsView; import com.flexganttfx.view.graphics.renderer.ActivityBarRenderer; import com.flexganttfx.view.timeline.Timeline; public class TutorialAircraftFlight extends Application { class FlightData { String flightNo; Instant departureTime = Instant.now(); Instant arrivalTime = Instant.now().plus(Duration.ofHours(6)); public FlightData(String flightNo, int day) { this.flightNo = flightNo; departureTime = departureTime.plus(Duration.ofDays(day)); arrivalTime = arrivalTime.plus(Duration.ofDays(day)); } } class Flight extends MutableActivityBase<FlightData> { public Flight(FlightData data) { setUserObject(data); setName(data.flightNo); setStartTime(data.departureTime); setEndTime(data.arrivalTime); } } class Aircraft extends Row<Aircraft, Aircraft, Flight> { public Aircraft(String name) { super(name); } } public void start(Stage stage) { // Create the Gantt chart GanttChartLite<Aircraft> gantt = new GanttChartLite<>(new FlightSchedule(new Aircraft("ROOT"))); Layer flightsLayer = new Layer("Flights"); gantt.getLayers().add(flightsLayer); Aircraft b747 = new Aircraft("B747"); b747.addActivity(flightsLayer, new Flight(new FlightData("flight1", 1))); b747.addActivity(flightsLayer, new Flight(new FlightData("flight2", 2))); b747.addActivity(flightsLayer, new Flight(new FlightData("flight3", 3))); Aircraft a380 = new Aircraft("A380"); a380.addActivity(flightsLayer, new Flight(new FlightData("flight1", 1))); a380.addActivity(flightsLayer, new Flight(new FlightData("flight2", 2))); a380.addActivity(flightsLayer, new Flight(new FlightData("flight3", 3))); gantt.getRows().setAll(b747, a380); Timeline timeline = gantt.getTimeline(); timeline.showTemporalUnit(ChronoUnit.HOURS, 10); GraphicsView<Aircraft> graphics = gantt.getGraphics(); graphics.setActivityRenderer(Flight.class, GanttLayout.class, new ActivityBarRenderer<>(graphics, "Flight Renderer")); graphics.showEarliestActivities(); Scene scene = new Scene(gantt); stage.setScene(scene); stage.sizeToScene(); stage.centerOnScreen(); stage.show(); } public static void main(String[] args) { launch(args); }
- Since:
- 1.6
-
-
Field Summary
-
Fields inherited from class javafx.scene.layout.Region
USE_COMPUTED_SIZE, USE_PREF_SIZE
-
Fields inherited from class javafx.scene.Node
BASELINE_OFFSET_SAME_AS_HEIGHT
-
-
Constructor Summary
Constructors Constructor Description GanttChartLite()
Constructs a new Gantt Chart control.
-
Method Summary
All Methods Instance Methods Concrete Methods Modifier and Type Method Description protected Skin<?>
createDefaultSkin()
ObservableList<R>
getRows()
Returns the list that is used to store all rows of the model.ListProperty<R>
rowsProperty()
Returns the property used to store the list of rows.void
setRows(ObservableList<R> rows)
Sets the value of therowsProperty()
.-
Methods inherited from class com.flexganttfx.view.GanttChartBase
createGraphics, createTimeline, detailProperty, fixedCellSizeProperty, getCalendars, getDetail, getFixedCellSize, getGraphics, getGraphicsHeader, getGraphicsMasterDetailPane, getLayers, getLinks, getMasterTimeline, getPosition, getRowFilter, getTimeline, getTimelineScrollBar, getUserAgentStylesheet, graphicsHeaderProperty, isShowDetail, masterTimelineProperty, positionProperty, redrawObservable, rowFilterProperty, setDetail, setFixedCellSize, setGraphicsHeader, setMasterTimeline, setPosition, setRowFilter, setShowDetail, showDetailProperty
-
Methods inherited from class com.flexganttfx.view.util.FlexGanttFXControl
getUserAgentStylesheet
-
Methods inherited from class javafx.scene.control.Control
computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getClassCssMetaData, getContextMenu, getControlCssMetaData, getCssMetaData, getInitialFocusTraversable, getSkin, getTooltip, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinProperty, tooltipProperty
-
Methods inherited from class javafx.scene.layout.Region
backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getWidth, heightProperty, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapPositionX, snapPositionY, snapSize, snapSizeX, snapSizeY, snapSpace, snapSpaceX, snapSpaceY, snapToPixelProperty, widthProperty
-
Methods inherited from class javafx.scene.Parent
getChildren, getChildrenUnmodifiable, getManagedChildren, getStylesheets, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setNeedsLayout, updateBounds
-
Methods inherited from class javafx.scene.Node
accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInitialCursor, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, getViewOrder, hasProperties, hoverProperty, idProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setViewOrder, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, viewOrderProperty, visibleProperty
-
Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait
-
Methods inherited from interface javafx.css.Styleable
getStyleableNode
-
-
-
-
Method Detail
-
createDefaultSkin
protected Skin<?> createDefaultSkin()
- Overrides:
createDefaultSkin
in classControl
-
rowsProperty
public final ListProperty<R> rowsProperty()
Returns the property used to store the list of rows.- Returns:
- the list of rows
- Since:
- 1.6
-
setRows
public final void setRows(ObservableList<R> rows)
Sets the value of therowsProperty()
.- Parameters:
rows
- the new rows to display- Since:
- 1.6
-
getRows
public final ObservableList<R> getRows()
Returns the list that is used to store all rows of the model.- Returns:
- a list of rows
- Since:
- 1.6
-
-
